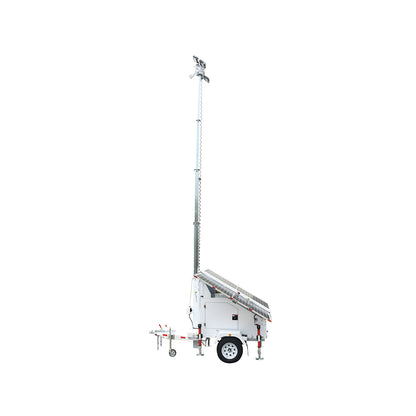

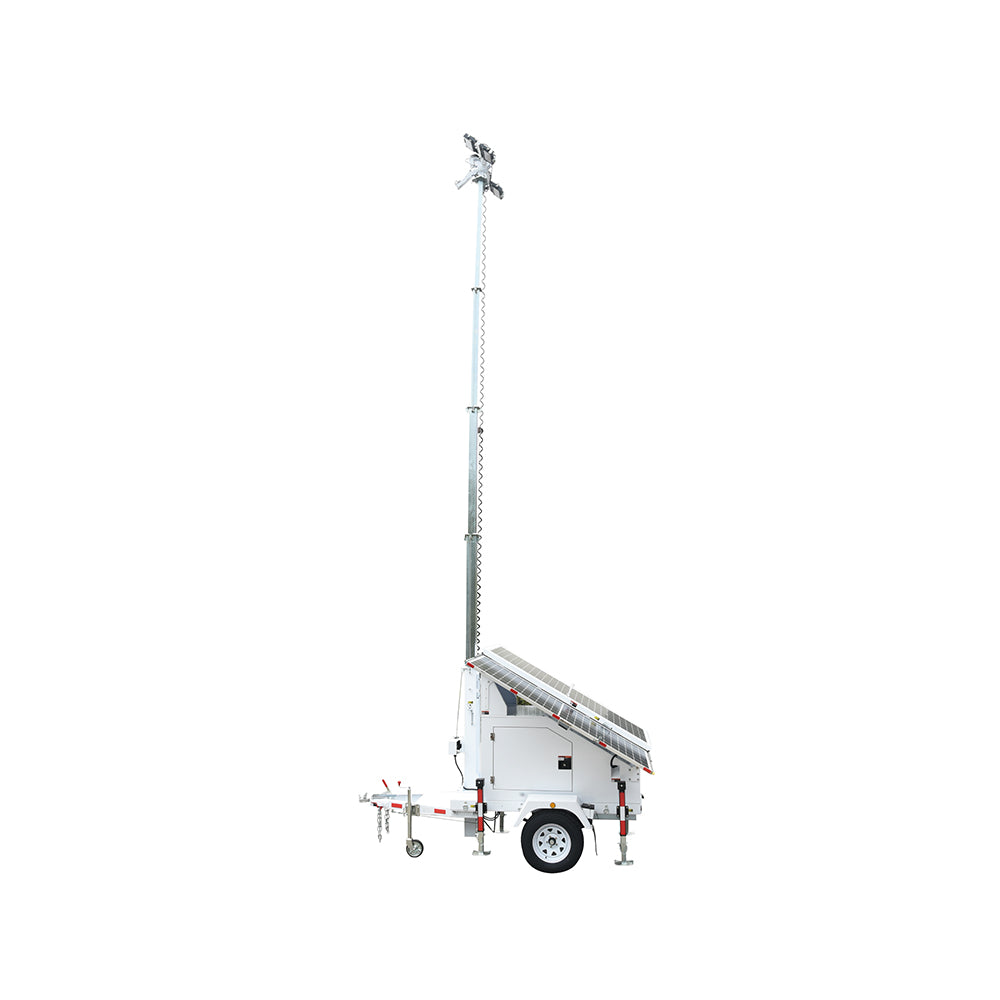

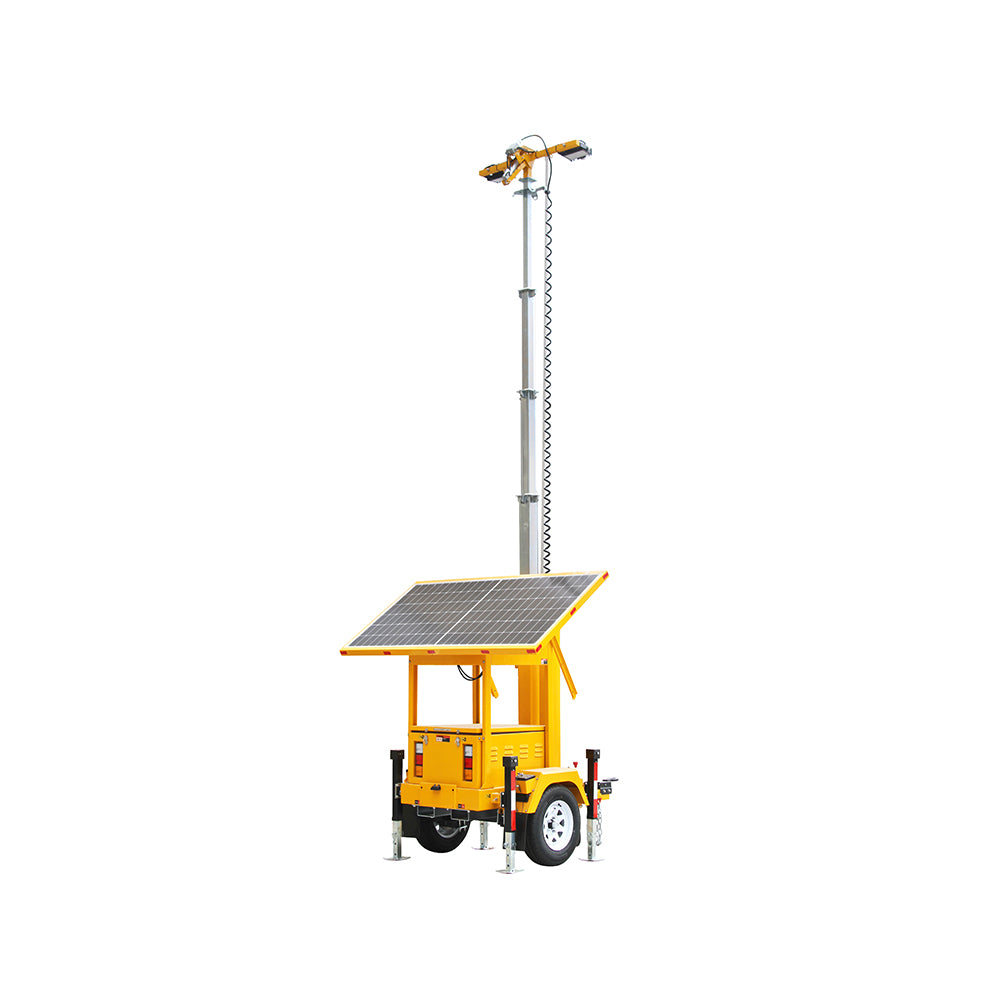

PowerSite 120 | AVS-PS120 | Solar Tower | 120 Watt | 18000 Lumens | 23Ft | IP67 | DC24V

PowerSite 120 | AVS-PS120 | Solar Tower | 120 Watt | 18000 Lumens | 23Ft | IP67 | DC24V

The Beyond Solar PowerSite 120 is quiet, compact, powerful, and perfect for construction lighting, special events, and other work zones. It is ideal for construction and other work sites, parking lots, emergency response during natural disasters, and mining sites.

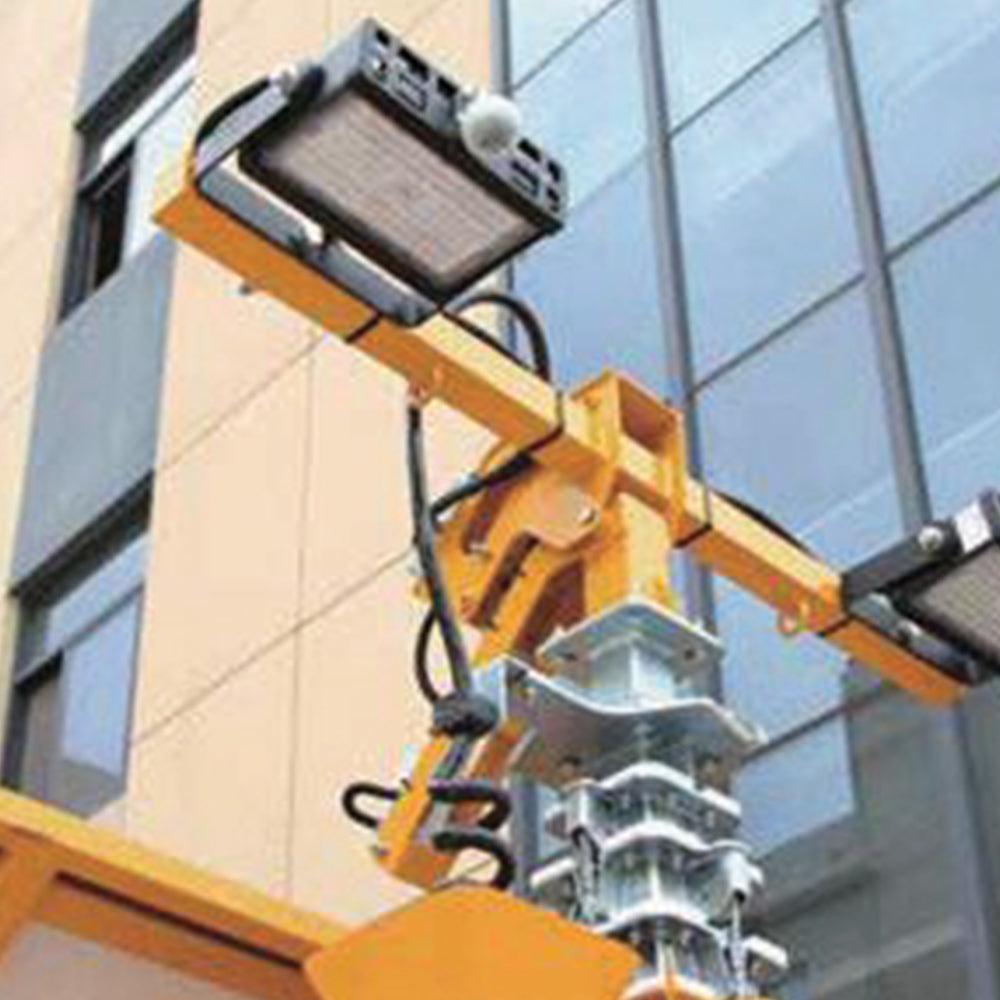

  • 2 × 60W lamps with 120W output
  • 18,000 lumens brightness
  • DC 24V rated voltage
  • 50,000 hours LED lifespan
  • Manual light bar rotation (90° electric tilting, 350° electric rotation optional)
  • IP67 protection rating
  • 2 × 150Ah deep cycle gel batteries (2560Wh capacity)
  • 10-hour recharge time, 24-hour running time
  • 1 × 455W solar panel with 10°–45° manual lifting
  • Aluminum frame mounting with 40A MPPT controller (95% efficiency)
  • Automatic MPPT solar charging controller (35A rated current)
  • Floating charge voltage: 12.4V, self-power consumption ≤30mA
  • Operates in temperatures from -4°F to 58°F
  • 22.9 ft max extended mast height, 8.8 ft retracted height
  • 5-section mast with manual (1,500lbs hand winch) or electric (3,000lbs winch) extension
  • 4 × 2.5mm TPU mast cable
  • 2 forklift holes for easy transport
  • Wind resistance up to 62.1 MI/H

Vendor: Beyond Solar

SKU: 599001

Model Number: AVS-PS120

Availability: On-Demand Order (Lead Time: 12–14 Weeks)

Login to see prices View full details

View External Files

The Beyond Solar PowerSite 120 is quiet, compact, powerful, and perfect for construction lighting, special events, and other work zones. It is ideal for construction and other work sites, parking lots, emergency response during natural disasters, and mining sites.



  • 2 × 60W lamps with 120W output
  • 18,000 lumens brightness
  • DC 24V rated voltage
  • 50,000 hours LED lifespan
  • Manual light bar rotation (90° electric tilting, 350° electric rotation optional)
  • IP67 protection rating
  • 2 × 150Ah deep cycle gel batteries (2560Wh capacity)
  • 10-hour recharge time, 24-hour running time
  • 1 × 455W solar panel with 10°–45° manual lifting
  • Aluminum frame mounting with 40A MPPT controller (95% efficiency)
  • Automatic MPPT solar charging controller (35A rated current)
  • Floating charge voltage: 12.4V, self-power consumption ≤30mA
  • Operates in temperatures from -4°F to 58°F
  • 22.9 ft max extended mast height, 8.8 ft retracted height
  • 5-section mast with manual (1,500lbs hand winch) or electric (3,000lbs winch) extension
  • 4 × 2.5mm TPU mast cable
  • 2 forklift holes for easy transport
  • Wind resistance up to 62.1 MI/H

About PowerSite 120

The Beyond Solar PowerSite 120 is quiet, compact, powerful, and perfect for construction lighting, special events, and other work zones. It is ideal for construction and other work sites, parking lots, emergency response during natural disasters, and mining sites.



  • 2 × 60W lamps with 120W output
  • 18,000 lumens brightness
  • DC 24V rated voltage
  • 50,000 hours LED lifespan
  • Manual light bar rotation (90° electric tilting, 350° electric rotation optional)
  • IP67 protection rating
  • 2 × 150Ah deep cycle gel batteries (2560Wh capacity)
  • 10-hour recharge time, 24-hour running time
  • 1 × 455W solar panel with 10°–45° manual lifting
  • Aluminum frame mounting with 40A MPPT controller (95% efficiency)
  • Automatic MPPT solar charging controller (35A rated current)
  • Floating charge voltage: 12.4V, self-power consumption ≤30mA
  • Operates in temperatures from -4°F to 58°F
  • 22.9 ft max extended mast height, 8.8 ft retracted height
  • 5-section mast with manual (1,500lbs hand winch) or electric (3,000lbs winch) extension
  • 4 × 2.5mm TPU mast cable
  • 2 forklift holes for easy transport
  • Wind resistance up to 62.1 MI/H

Features Highlight

The Beyond Solar PowerSite 120 is quiet, compact, powerful, and perfect for construction lighting, special events, and other work zones. It is ideal for construction and other work sites, parking lots, emergency response during natural disasters, and mining sites.



  • 2 × 60W lamps with 120W output
  • 18,000 lumens brightness
  • DC 24V rated voltage
  • 50,000 hours LED lifespan
  • Manual light bar rotation (90° electric tilting, 350° electric rotation optional)
  • IP67 protection rating
  • 2 × 150Ah deep cycle gel batteries (2560Wh capacity)
  • 10-hour recharge time, 24-hour running time
  • 1 × 455W solar panel with 10°–45° manual lifting
  • Aluminum frame mounting with 40A MPPT controller (95% efficiency)
  • Automatic MPPT solar charging controller (35A rated current)
  • Floating charge voltage: 12.4V, self-power consumption ≤30mA
  • Operates in temperatures from -4°F to 58°F
  • 22.9 ft max extended mast height, 8.8 ft retracted height
  • 5-section mast with manual (1,500lbs hand winch) or electric (3,000lbs winch) extension
  • 4 × 2.5mm TPU mast cable
  • 2 forklift holes for easy transport
  • Wind resistance up to 62.1 MI/H

FAQs

Watts measure power consumption, while lumens measure light output. Higher wattage doesn't always mean brighter light—lumens matter more for brightness.

It depends on the application. For example, small signs need around 3.4 watts, while large billboards may need up to 25 watts. Pathways usually need 15–25 watts, and parking lots or highways may require up to 70 watts.

Yes. Most LEDs range from 3000K to 5000K. Coastal areas may need turtle-friendly lighting, which impacts wattage and output.

These controls adjust brightness based on activity. They reduce power use during inactive times while maintaining safety and visibility.

They define how light spreads. Type II is ideal for paths and roads; Type III and IV suit parking lots and larger areas.

Always work with a solar lighting specialist. They’ll help ensure the fixture meets both lighting and solar power requirements efficiently.
